Chart Stacked multi-series

fabyo · July 5, 2013

Hello

I am not able to make a graph like this:

angelr · July 5, 2013

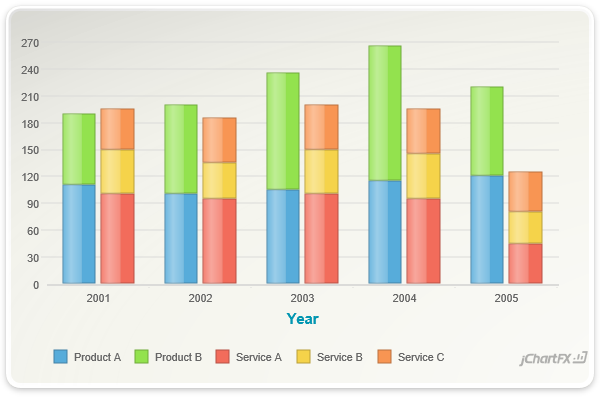

Following is a sample code to resemble your chart using JChartFX:

 <!DOCTYPE html>

<html>

<head>

    <title>Multi-Stacked Series</title>
    <script type="text/javascript" src="Scripts/jchartfx.system.js"></script>
    <script type="text/javascript" src="Scripts/jchartfx.coreVector.js"></script>
    <script type="text/javascript" src="Scripts/jchartfx.advanced.js"></script>
    <script type="text/javascript" src="Scripts/jchartfx.vectorTemplates.js"></script>
</head>

<body>

    <div id="ChartDiv1" style="width: 600px; height: 400px; display: inline-block"></div>
    <script type="text/javascript">

        window.onload = function () {

            onLoadDoc();

        };
        var chart1;
        function onLoadDoc() {
            chart1 = new cfx.Chart();
            var items = [

            { "Product A": 110, "Product B": 80, "Service A": 100, "Service B": 50, "Service C": 45, "Date": "2001-01-01T24:00:00.000Z" },

            { "Product A": 100, "Product B": 100, "Service A": 95, "Service B": 40, "Service C": 50, "Date": "2002-01-01T24:00:00.000Z" },

            { "Product A": 105, "Product B": 130, "Service A": 100, "Service B": 50, "Service C": 50, "Date": "2003-01-01T24:00:00.000Z" },

            { "Product A": 115, "Product B": 150, "Service A": 95, "Service B": 50, "Service C": 50, "Date": "2004-01-01T24:00:00.000Z" },

            { "Product A": 120, "Product B": 100, "Service A": 45, "Service B": 35, "Service C": 45, "Date": "2005-01-01T24:00:00.000Z" }

            ];
            chart1.setDataSource(items);
            chart1.setGallery(cfx.Gallery.Bar);
            var bar = chart1.getGalleryAttributes();

            bar.setTemplate("BarSpotlight");



            var title = new cfx.TitleDockable();

            title.setText("Year");



            var axisX = chart1.getAxisX();

            axisX.setTitle(title);
            chart1.getSeries().getItem(0).setStacked(true);

            chart1.getSeries().getItem(1).setStacked(true);

            chart1.getSeries().getItem(3).setStacked(true);

            chart1.getSeries().getItem(4).setStacked(true);



            chart1.getLegendBox().setDock(cfx.DockArea.Bottom);
            var chartDiv = document.getElementById('ChartDiv1');

            chart1.create(chartDiv);
            };
    </script>
</body>

</html>

MultiStacked Series

fabyo · July 5, 2013

thanks

Not 100% work:

thank you for your help

Gra

I need to make a graph like this:

PRK · August 8, 2013

Hi,

I would like to know how to set unit symble like % or $ or GB or Kb in jChartFX. Ex: in Y axis lets have 10 GB, 50 GB, 100 GB, 200 GB ...etc

I am about it use it for disk space notification, so i need to use GB format.

I have searched JchartFx documentaiton and got to know that the following kindda could be used,

chart1.getAxisY().getLabelsFormat().setFormat(cfx.AxisFormat.Currency);

but where can i find the all available label formats? like cfx.AxisFormat.Currency, cfx.AxisFormat.Storage, cfx.AxisFormat.X, cfx.AxisFormat.Y, cfx.AxisFormat.Z

Does the documentation has what is X,Y or Z that could replace Currency???
